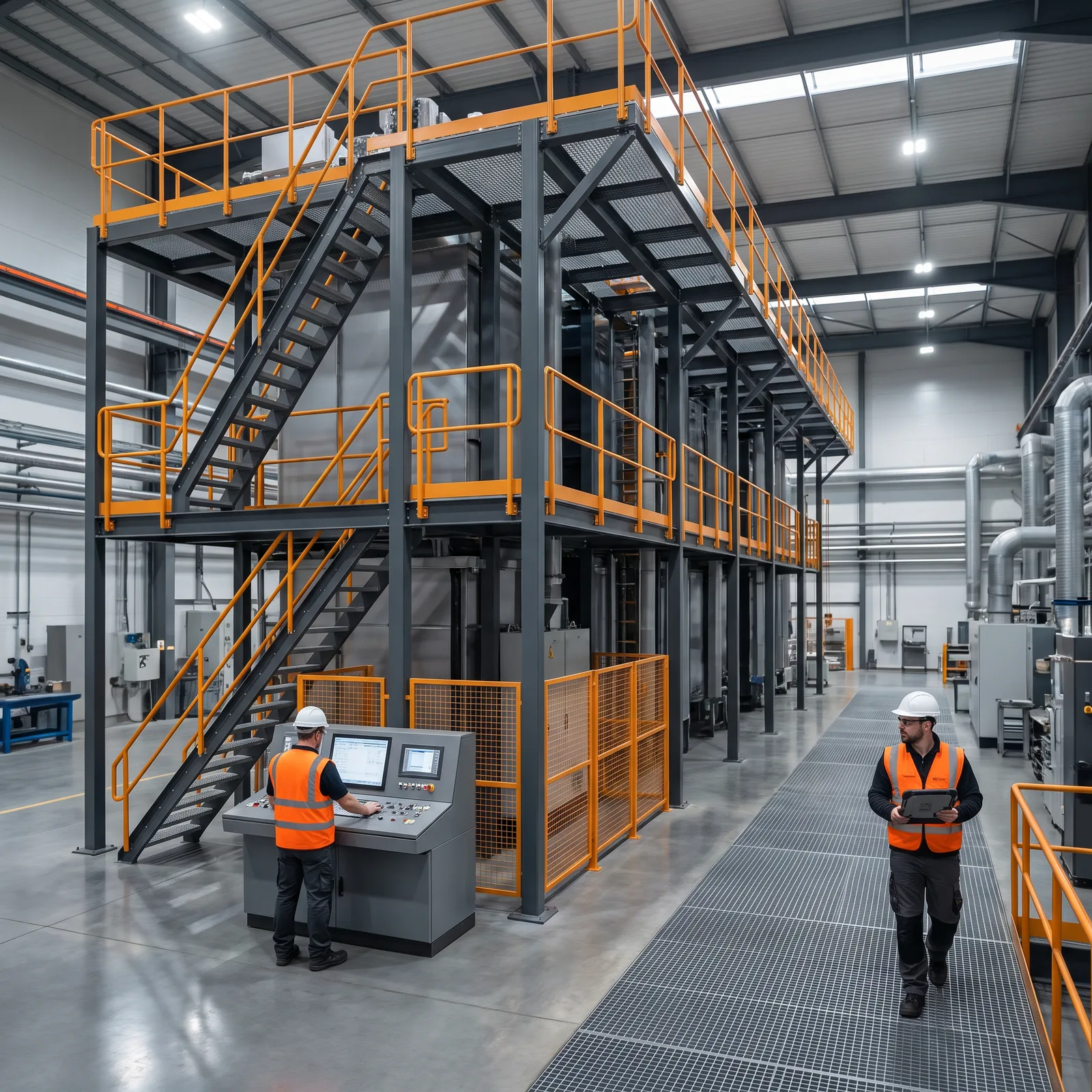

Vertical powder coating line for aluminium profiles
Price from-to, depending on configuration
350,000-700,000 EUR (EXW)
Price depends on configuration. Informational only (Art. 71 Polish Civil Code), not a binding offer. Verified: 2026-07-17.
The vertical line is the top league of profile powder coating: 6-metre profiles hang vertically and pass through booths that coat them all round, eliminating re-hanging and giving a perfectly even film on every face. Output reaches 800-1200 tonnes per month (50-80 t/day) with only 2-3 operators.
The scope covers the tower conveyor, surface pre-treatment, booths with automatic colour change and ≥98% powder recovery, the curing oven and supervisory control. Film thickness tolerance is ±5 μm. The line takes one-third to one-half of a horizontal line's floor space, but needs an 8.5-9 m tall building.
This is a project-class investment, not an off-the-shelf product, so we start from your building and colour mix, and finish with a layout design and an installation schedule with the manufacturer's crew.
Specification
| Output | 800-1200 t/month (50-80 t/day) |
|---|---|
| Powder recovery | ≥98%, application >85% |
| Film tolerance | ±5 μm |
| Crew | 2-3 operators |
| Required hall height | 8.5-9 m |
| Footprint | 1/3-1/2 of a horizontal line |
CE status
CE: machine requires EU conformity work, we arrange a compliance quote
→ How we workTransaction terms
- Production lead time: 16-24 wks
Applications
High-volume coating of architectural profiles: window, facade and fencing systems, especially with frequent colour changes.
Who it is for
Extruders and coating job-shops planning a capacity jump above 500 t/month; plants running out of space for a horizontal line.
FAQ
Vertical or horizontal?
Vertical wins at high volumes and frequent colour changes; horizontal at smaller scale, low buildings and unusual profiles. Send your hall dimensions and production plan, and we will price both options.
