Automatic wood grain sublimation machine for profiles
Indicative price range
35,000–80,000 EUR (EXW)
Indicative range — an invitation to negotiate, not a binding offer. Verified: 2026-07-17.

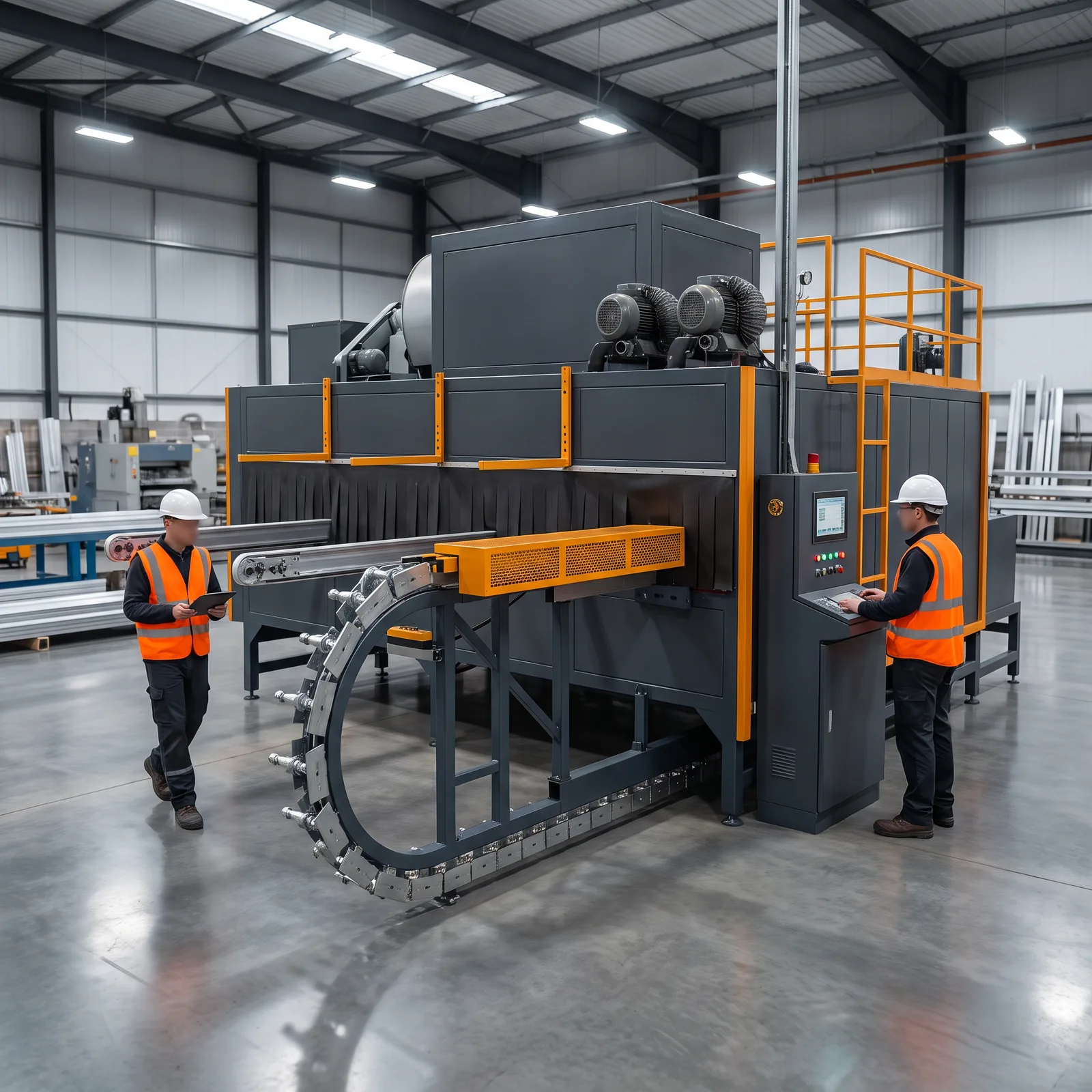

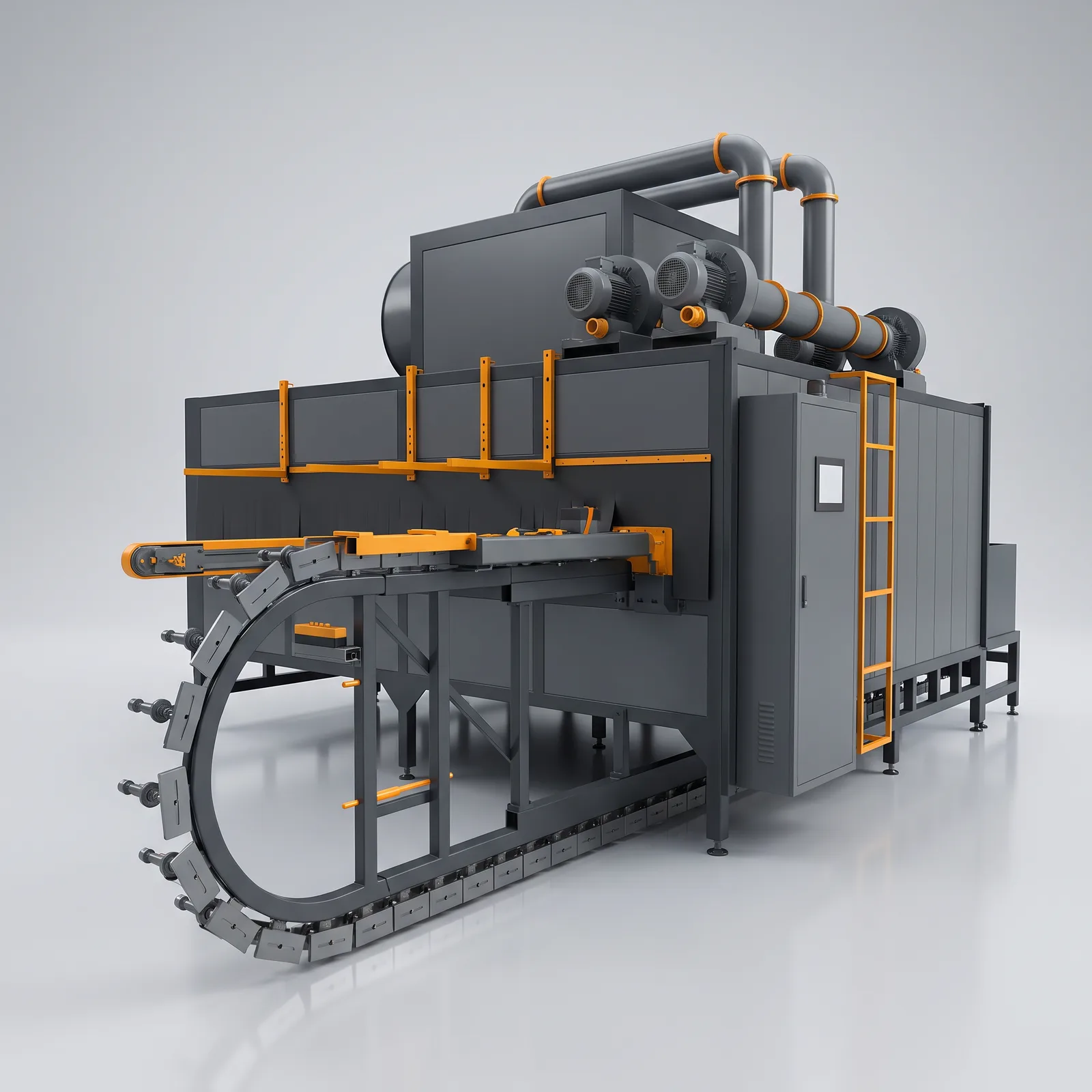

The side-loading automatic sublimation machine applies wood-grain finish to aluminium profiles continuously — profiles enter on one side and leave 'wooden' on the other. Output is 5–10 tonnes per day, two to three times more than classic batch chambers.
After powder coating (the base colour), the profile is wrapped in printed transfer film, ultrasonically welded into a sleeve, then passes through a 150–200°C heating chamber with vacuum pressing the film onto every edge. Siemens or Mitsubishi PLC control with touchscreen; gas, LPG, diesel or electric heating.
This is our manufacturer's most-shipped machine type to Europe — proven across Balkan and Middle-Eastern markets. The set includes the ultrasonic film welder, loading tables and a starter stock of transfer film patterns.
Specification
| Output | 5–10 t/day (continuous) |
|---|---|
| Process temperature | 150–200°C |
| Heating | gas / LPG / diesel / electric |
| Control | Siemens/Mitsubishi PLC, touchscreen |
| Included | ultrasonic welder, tables, starter film stock |
CE status
CE: manufacturer certificate (we verify scope and issuing body before any deal)
Producent deklaruje certyfikat CE dla maszyny sublimacyjnej — przed transakcją weryfikujemy zakres certyfikatu i jednostkę wystawiającą.
→ How we workTransaction terms
- Production lead time: 6–10 wks
Applications
Wood-finish profiles for fencing, gates, pergolas, windows and facades; also aluminium sheets and tubes.
Who it is for
Fence and window manufacturers adding wood finishes; powder coating shops extending into sublimation.
FAQ
Can I powder coat and sublimate in one building?
Yes — it is the natural pairing. The coating line provides the base, sublimation the finish. We design both lines as one process flow.
Where do I get transfer films?
We supply transfer films and papers in hundreds of wood patterns as consumables — from the manufacturer's stock, with 2–3 week delivery.
