Ultrasonic film welding machine for aluminium profiles

The ultrasonic film welding machine handles the step that decides the quality of the whole wood-grain sublimation process: sealing the aluminium profile into a tight sleeve of printed transfer film. A leaky or scorched seam means a blurred grain pattern and scrap — which is why ultrasonic welding has replaced glueing and heat sealing: it bonds the film locally, without burning the print and without adhesive marks on the powder-coated base.

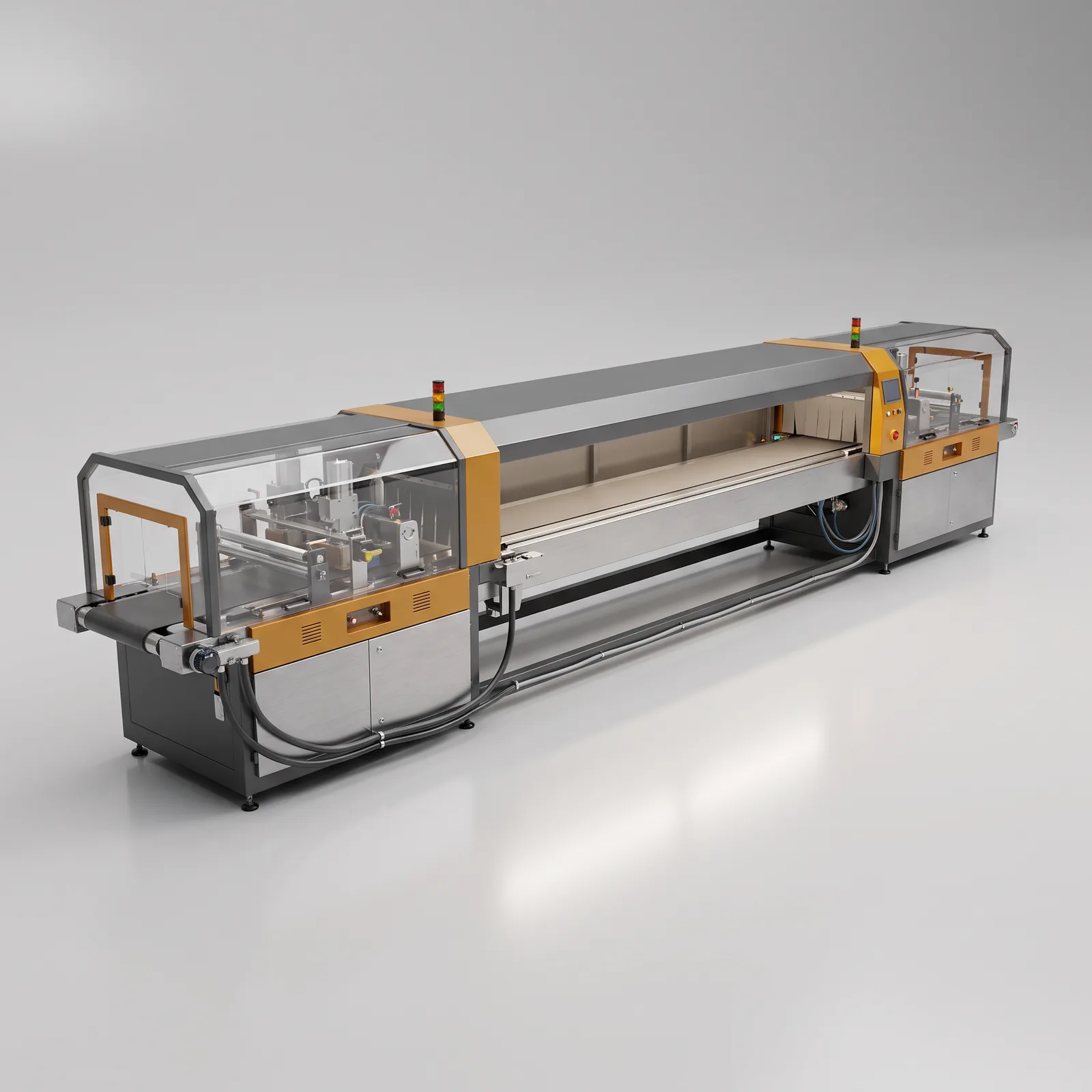

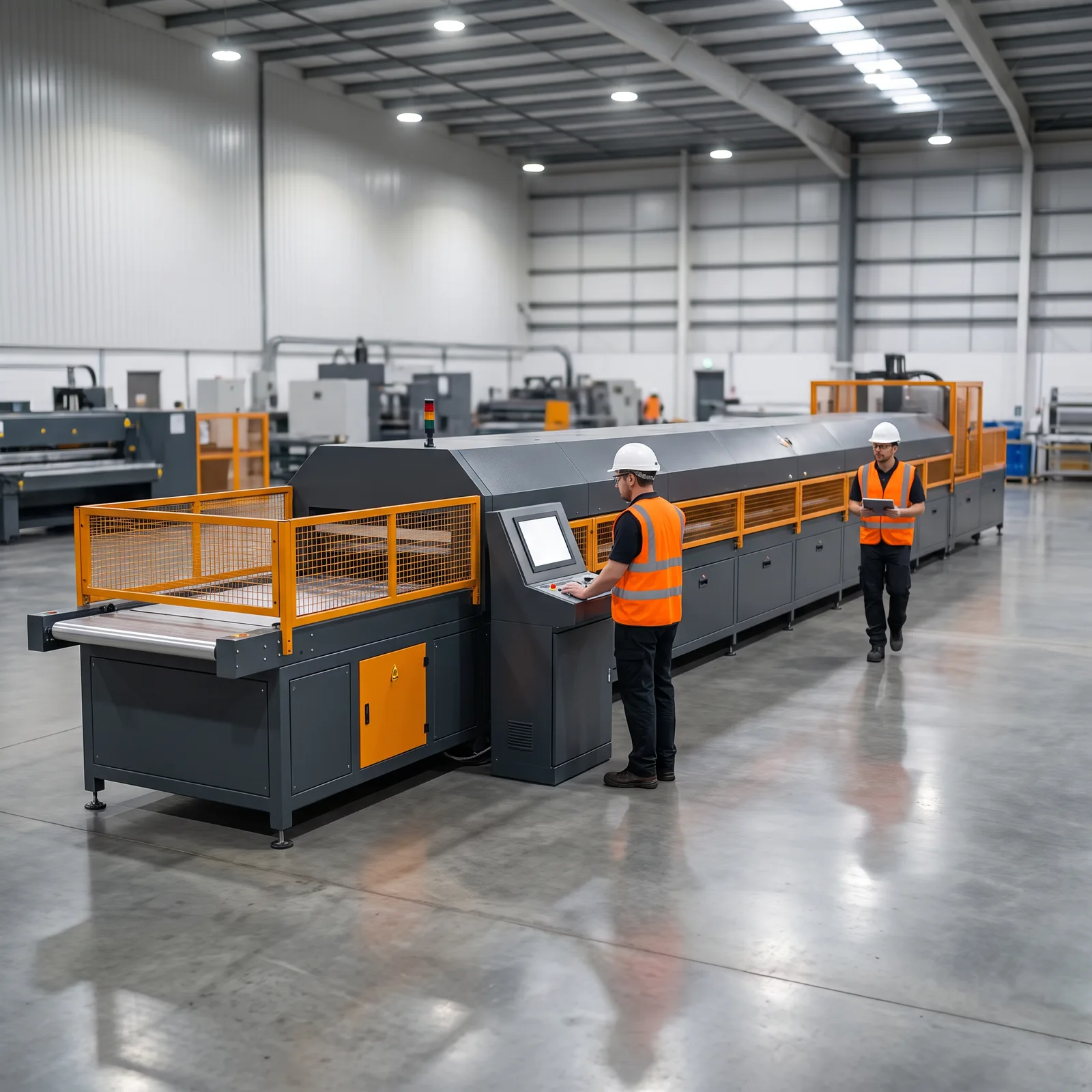

The machine works in-line: the profile enters on a loading conveyor with a soft PVC belt that will not mark the coating, is wrapped in film 200–600 mm wide, and a travelling welding head seals the edge along the full profile length at 18–24 m/min. Throughput of 150–180 bags per hour keeps comfortably ahead of a continuous sublimation furnace. Total connected power is just 4 kW, so energy cost is negligible. The machine is about 15 m long but only 1 m wide and 1.5 m high — it sits along a wall, in line with the furnace infeed.

A note in fairness: if you buy our automatic sublimation machine, a basic film welder is included in the scope. Buying this machine separately makes sense as a second welder when output grows (bagging is usually the first bottleneck), to automate manual film wrapping on an existing batch chamber from another maker, or for welding protective film sleeves outside sublimation altogether.

This is one of the few machines in our range for which the manufacturer declares a CE certificate — for an aluminum profile plant importing from China, a genuine head start. We still verify the certificate's scope and the issuing body before any deal; our guide to CE marking of Chinese machinery explains why, and you can ask us for the document upfront.
