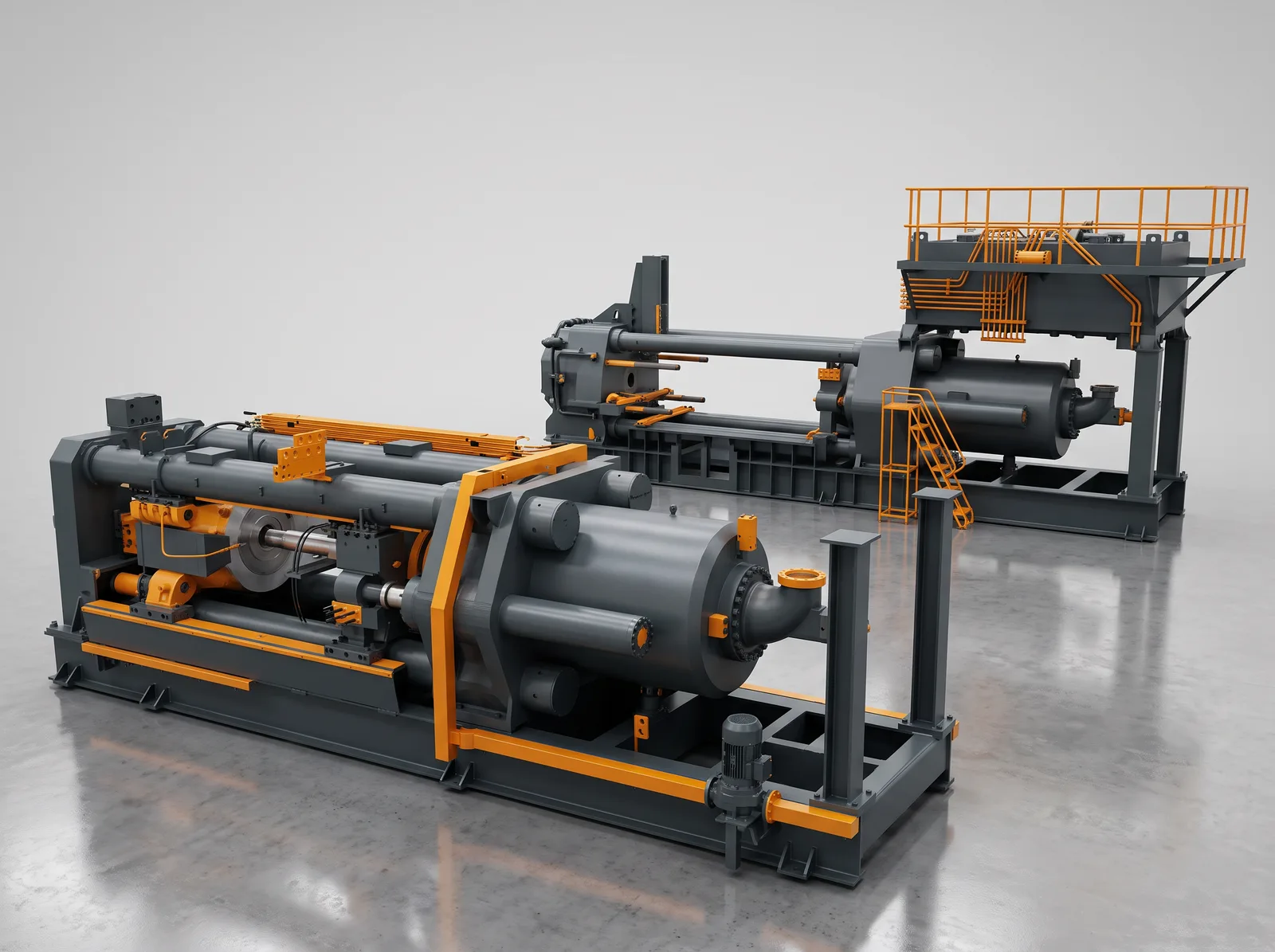

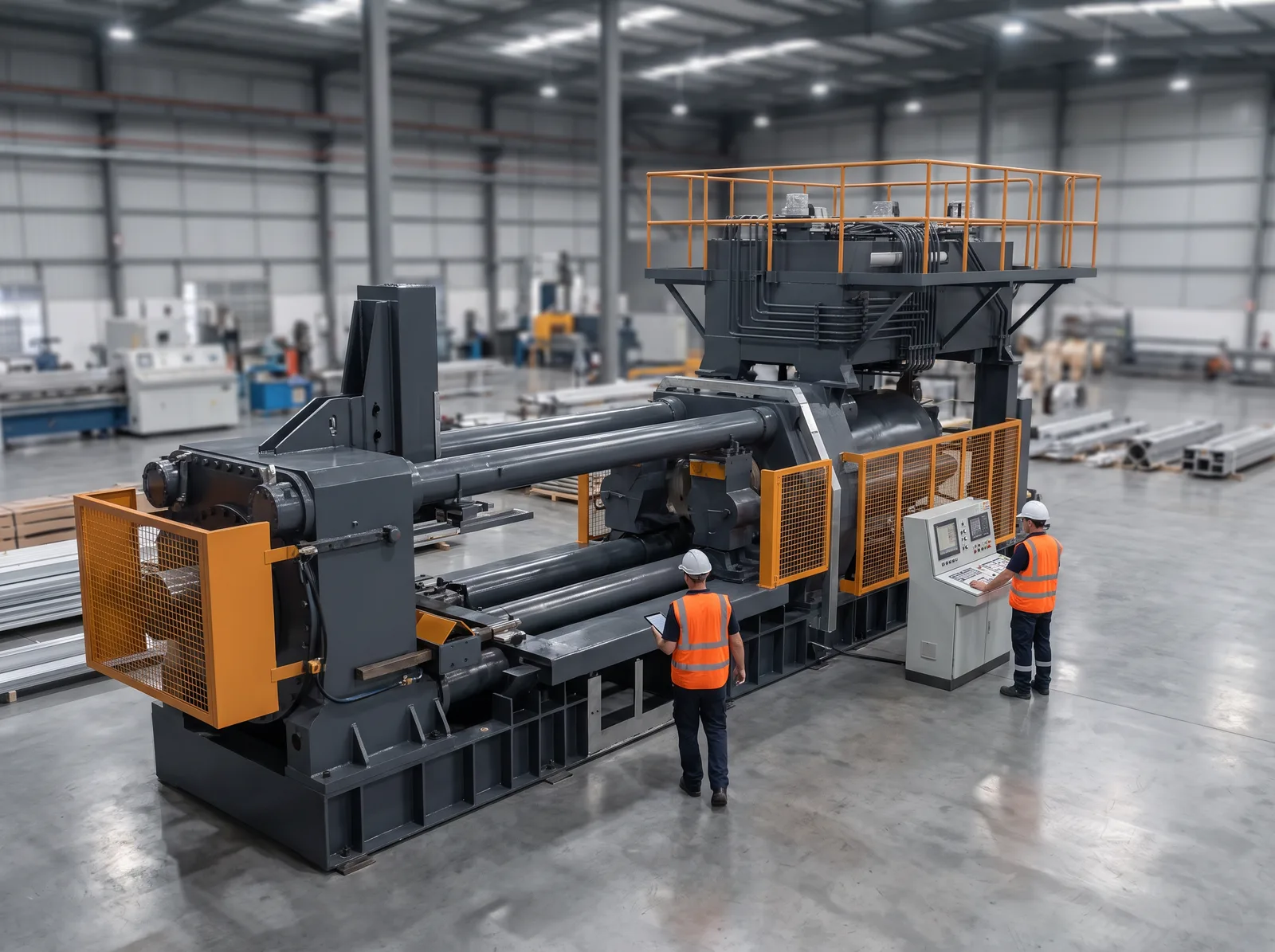

1800-tonne aluminium extrusion press
Indicative price range
95,000–160,000 EUR (EXW)
Indicative range — an invitation to negotiate, not a binding offer. Verified: 2026-07-17.
The workhorse tonnage of mid-size extrusion plants: an 1800-tonne (2000 US ton) press for 7-inch billet combines a wide profile range with reasonable energy cost. It handles window systems as well as mid-section industrial profiles — facades, structures, photovoltaics.
The 980 mm main cylinder runs at 210 kgf/cm²; drive comes from three 110 kW motors. Container heated to 400°C, billets up to 900 mm, 20-second dead cycle. H13 container and stem, cast-steel front platen, 30 m³ oil cooler.
Available as short or long stroke, with VFD drive (approx. 15% energy saving) or servo. We complete the full line around the press: billet furnace, puller, run-out table with cooling, stretcher, saw and aging oven — one delivery schedule, one FAT.
Specification
| Force | 1800 t (2000 US ton) |
|---|---|
| Billet | 7″ (178 mm), up to 900 mm long |
| Main cylinder | ø980 mm, 210 kgf/cm² |
| Drive | 3 × 110 kW |
| Dead cycle | 20 s |
| Materials | H13 container & stem, forged cylinders |
CE status
CE: machine requires EU conformity work — we arrange a compliance quote
→ How we workTransaction terms
- Production lead time: 20–28 wks
Applications
Window, door and facade systems, mid-section industrial profiles, photovoltaic structures, transport profiles.
Who it is for
Mid-size extruders expanding capacity; companies moving from buying profiles to full in-house production.
FAQ
How much does an 1800 ton extrusion press cost?
Indicatively €95–160k EXW; the upper range covers servo versions with extended equipment. A Western equivalent typically costs several times more.
Can I order the complete line at once?
Yes — and we recommend it. A complete line (billet furnace, press, puller, run-out table, saw, aging oven) from one maker means one FAT, one logistics chain and machines matched to each other.
